   Valves / Check Valves


Wafter Check Valves



Technical Data
Manufacturing STD: API 6D/ ANSI B16.34
Testing & Inspection STD:
API 598
Pressure class: DN ND 10, ND 16 & ND 40, ASA 150, 300

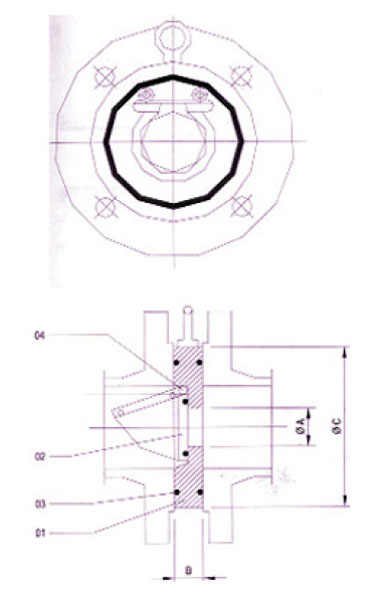

No. Description Material
Qty.
01
Body C.I. IS : 210 GR. FG 200/
ASTM A 216 GR WCB
1
02
Disc AISI 304 /G.M.
2
03
Hinge pin AISI 304 /AISI 316
1
04
Plug AISI 304 /AISI 316
2
05
Stop Pin AISI 304 /AISI 316
1
06
Spring AISI 304 /AISI 316
1
07
Bearing AISI 304 /AISI 316
1

Size
50
65
80
100
125
150
200
250
300
ø A
30
40
52
71
93
114
157
195
230
B
14
14
14
14
16
19
28
28
28
øC
109
129
144
164
194
220
275
330
380
All dimension are in mm

Primary service Rating & Test Pressure
Class
Working Temp.
Hyd. Test Pressure

Body
Seat
150
20° C to 180°C
225 PSIG
150 PSIG


Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
