Strainers are being used in Airconditioning system, chemical plants, Textile Mills, Oil Refineries, Ventilation system, Thermal power Stations, to filter water, chemicals gases and other liquid. Construction Detail - The Cast Iron pot and Y-type strainers are casted from good quality of cast iron, grade, CI-260 equivalent to BS-1452 standard. The wall thickness of body is so thick to secure high safety to the rated service and additional reinforcement to strain well in piping system . The top lid is openable and fitted with sufficient number of nuts and bolts with manin body. The filter element can be exchanged without disconnecting the main pipe line. A permanent magnet is provided with drain plug to attract the iron and dust particles
from the water/ liquid.

• Filter Element - These strainers are provided with perforated
sheet of brass/ Stainless steel/ bronze

• Test Pressure - These strainers are available at different pressure
between 150 PSI to 30 PSI (10 kgcm2 to 21 kgcm2).

• Sizes Range - The pot strainers are available with flanged ends
from 25 mm to 300 mm connections. The Y-type strainers are
available in thread ends from 20 mm to 50 mm and above are
with flanged ends.

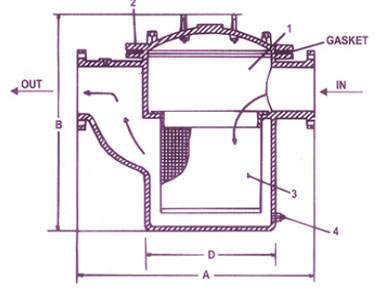

No.	Description	Material
01	Body	Cast Iron grade CI - 260
02	Top lid	cast Iron grade CI -260
03	Filter element	Brass/ Bronze / Stainless steel wire mesh 24 G X 14 Mesh
04	Magnetic Plug

Size	50	60	80	110	125	150	200	250	300
D	138	160	200	210	225	255	310	350	400
B	340	370	400	470	500	570	655	730	830
A	300	350	380	420	460	520	600	700	810

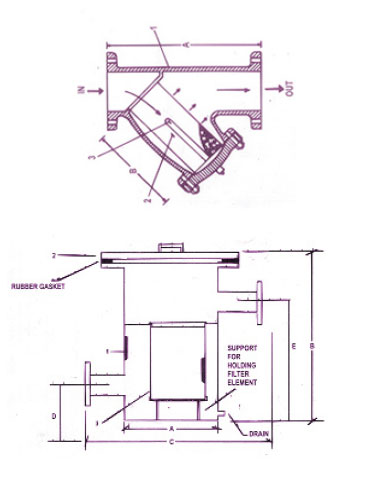

No.	Description	Material
01	Body	Cast Iron grade CI - 260
02	Filter element	Brass/ Bronze / Stainless steel perforated sheet with 3 mm hole
03	Magnetic Plug

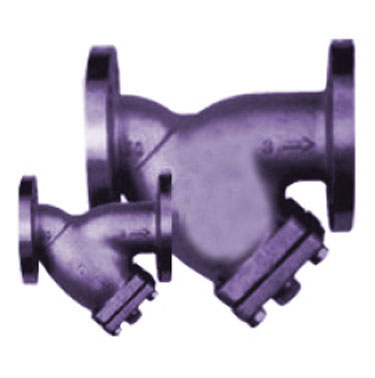

CI Y - type Strainers
Size	50	60	80	110	125	150	200	250	300
D	240	285	305	355	440	510	605	735	840
B	150	190	205	265	330	375	500	565	640

M.S. Pot and Y-Type Strainers

These strainers are fabricated out of good quality of steel as per IS 226. The discharge connection is provided below the level of inlet connection to minimise the pressure drop in piping, and it has more filteration area than cast iron strainers. The filter element is fabricated out of perforated sheet of Brass / Bronze / Stainless steel
having 3 mm perforattion hole. The dinensions are as per the following table. A permanent magnet is also provided to attract dust and iron particles

Material

1. Body M. S.
2. Upper Lid
3. Element-Perforated sheet Brass/ Bronze/ Stainless sheet
having 3 mm perforation.
