Valves / Forged Steel Valves
FCS Check Valves: ASA Class 800
FCS Gate Valves : ASA Class 800
FCS Globe Valves: ASA Class 800

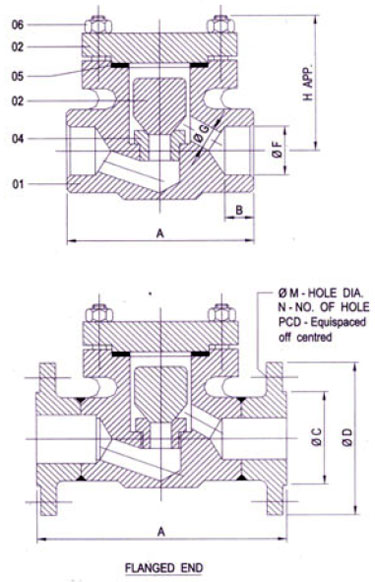

FCS Check Valves: ASA Class 800
Technical Data
Manufacturing STD:
BS 5352
Testing & Inspection STD:
API 598
Socket weld &
Threaded to:
As per ANSI B 16.10/ ANSI B 1.20.1
Flanged to:
ANSI B 16.5
Fnaned to Flange Distance:
ANSI B 16.10
No.
Description
Material
Qty.
01
Body
Forge Steel ASTM A 105
1
02
Cover
Forge Steel ASTM A 105
1
03
Valve
AISI 410 ( 13% CR.)
1
04
Seat Ring
AISI 410 ( 13% CR.)
1
05
Bonnet Gasket
Spiral wound S.S. 304 with CAF
1
16
Cover Stud & Nut
ASTM A 193 GR. B7 / ASTM A 194 GR. 2H
4 set
Screwed / Socket Weld Class - 800
Size
A
B
ø E
ø F
øG
H
15
86
10
13
22.0
9.0
50
20
91
13
13
27.5
12.7
62
25
104
13
15
34.0
17.5
68
40
127
15
25
48.6
26.8
100
50
143
16
25
61.0
36.5
100
Test Pressure
Body
Seat
3000 PSIG
2000 PSIG
Air test of seat at 100 PSIG
Class - 150
Size
A
ø C
ø D
ø M
N
PCD
15
107
35
89
16
4
60.4
20
119
43
98
16
4
70.0
25
138
51
108
16
4
79.0
40
164
73
127
16
4
98.5
50
204
92
152
19
4
120.6
Class - 300
Size
A
ø C
ø D
ø M
N
PCD
15
153
35
95
16
4
66.5
20
179
43
118
19
4
82.5
25
204
51
124
19
4
89.0
40
230
73
155
19
4
114.0
50
268
92
165
22
8
127.0
Note :
Due to constant upgradation designs & dimensions are subject to change wihtout notice.
