   Valves / Plug Valves

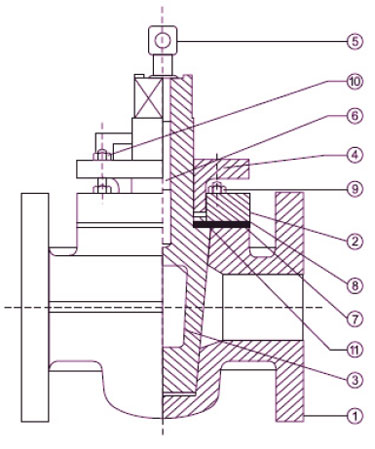

NO. PART QTY.
MATERIAL.
01 BODY
1
 CAST IRON, IS 210, GR
FG 220/260
02 TOP COVER
1
 CAST IRON, IS 210, GR
FG 220/260
03 PLUG
1
 CAST IRON, IS 210, GR
FG 220/260
04 GLAND
1
 CAST IRON, IS 210, GR
FG 220/260
05 LUBRICANT BOLT
1
 CARBON STEEL
06 NON RETURN VALVE
1
 CARBON STEEL
07 GASKET
1
 C A F
08 SHIM
1
 S.S. 304
09 COVER BOLTS
2
 CARBON STEEL
10 STUDS & NUTS
2+4
 CARBON STEEL
11 GLAND PACKING
2
 STEEL
11 GLAND PACKING 2
Note : Also available in CS(ASTMA 216 Gr WCB)/SS304 / SS316
PTFE SLEEVED /JACKETTED PLUG VALVES available on request.


Plug Valves with Flanged Enda are available from 1/2" to 4" in Regular Pattern & Short Pattern, Screwed from 1/2" to 1"

Wrenches for all sizes available when ordered seperately.

Flanges : As per B.S. 10 Table D, E, F Class 150 or ANSI 16.1 Class 125 Screwed : BSP Thread as per BS 21

Flanged Valves are offered undrilled.

Drilling can be done on request.

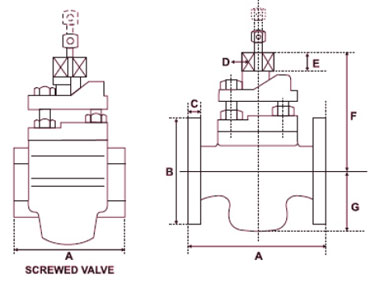

DIMENSIONS
REGULAR PATTERN
SHORT PATTERN
SIZE OF VALVES (mm)
15
20
25
40
50
65
80
100
150
50
65
80
100
150
SCREWED END TO END
A
89
95
111
FACE TO FACE
A
120
120
141
166
202
221
242
306
393
179
190
202
230
268
FLANGE DIAMETER
BST 'D'
83
101
114
133
152
165
184
216
279
152
165
184
216
BST 'F'
B
95
101
121
140
165
184
203
229
305
CLASS 125
89
98
108
127
152
178
190
229
297
152
178
190
229
FLANGE THINCKNESS
C
13
13
13
16
19
19
19
24
25
19
19
19
24
25
SIZE OF PLUG SQURE
D
19
22
22
27
31
38
41
47
49
27
31
38
41
49
DEPTH PF PLUG SQUARE
E
20
20
20
25
28
30
49
50
60
25
28
30
49
60
CENTER LINE TO TOP OF PLUG
F
100
114
120
157
173
196
226
247
325
156
172
197
222
305
CENTER LINE TO BOTTOM F0 BODY
G
34
46
49
65
76
92
107
136
185
70
90
101
114
175
WEIGHT ( kgs. )
2.95
4.1
5.5
10
15.5
22
30
51
100
13
18
25
35
83
WRENCH NOS.
1W
2W
3W
4W
5W
6W
7W
8W
10W
4W
5W
7W
7W
10W

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
