   Valves / Globe Valves

ASA Class 150/300 ASA Class 400/600 Din Std. ND-16 / ND-40

ASA Class 150/300



Primary service reating & test pressure
Class
Working press.
Temp.
HYD. Test pressure
Body
Seat
400
150 PSIG
800 ° F
1425 PSIG
1060 PSIG
600
300 PSIG
800 ° F
2175 PSIG
1600 PSIG
AIR TEST-SEAT 80 +_10 PSIG

Technical Data
Manufacturing STD: BS 1873
Testing & Inspection STD:
 API 598/ BS 5146
Face to Face: ANSI B 16.10
End connections: Flanged as per ANSI B 16.5
Shell wall thickness: ANSI B 16.34

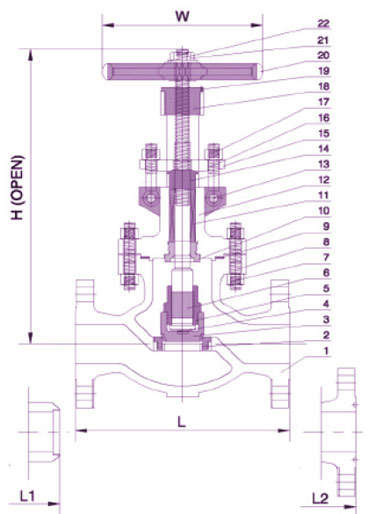

No. Description Material
Qty.
01 Body ASTM A 216 Gr. wcb
1
02 Bonnet ASTM A 216 Gr. wcb
1
03 Seat ring AISI 410 ( 13% CR.)
1
04 Disc AISI 410 ( 13% CR.)
1
05 Stem AISI 410 ( 13% CR.)
1
06 Stem Nut AISI 410 (13%CR)
1
07 Bonnet Bush AISI 410
1
08 Gland CARBON STEEL
1
09 Gland packing METALIC WIRE REINFORCED
GRAPHITED ASBESTOS / GRAFOIL
-
10 Yoke Sleeve NI-RESIST
1
11 Bonnet Gasket COMPRESSED ASBESTOS FIBRE/ SOFT STEEL
1
12 Bonnet Stud & Nut ASTM A 193 GR.B7
ASTM A 194 GR.2H
-
13 Eye Bolt & Nut ASTM A 193 GR.B7
ASTM A 194 GR.2H
2 Set
14 Hand Wheel CAST IRON
1
15 Hand Wheel Nut CARBON STEEL
1

Class - 150
Size
A
B
ø C
ø D
ø M
N
PCD
J
25
128
14.2
51
108.0
16
4
79.0
150
40
 165
17.5
73
127.0
16
4
98.5
210
50
 202
19.0
92
152.0
19
4
120.5
210
65
 215
22.3
105
178.0
19
4
140.0
255
80
 242
24.0
127
190.0
19
4
152.0
255
100
 291
24.0
157
229.0
19
8
190.0
405
125
357
24.0
186
254.0
22
8
216.0
490
150
 407
25.0
216
279.0
22
8
241.0
490
200
 496
28.5
270
343.0
22
8
298.0
610
250
 621
30.0
324
406.0
25
12
362.0
625
300
 699
32.0
381
483.0
25
12
432.0
625

Class - 300
Size
A
B
ø C
ø D
ø M
N
PCD
J
25
204
17.5
51
124.0
19
4
89
210
40
230
20.5
73
155.0
22
4
114
250
50
268
22.0
92
165.0
19
8
127
250
65
293
25.0
105
190.
22
8
149
405
80
318
28.5
127
209.0
22
8
168
405
100
357
32.0
157
254.0
22
8
200
490
125
399
35.0
186
279.0
22
8
235
490
150
443
36.5
216
317.0
22
12
270
490
200
532
41.0
270
381.0
25
12
330
610
250
621
47.0
324
444.5
29
16
387
610
300
710
51.0
381
521.0
32
16
451
610
all dimesion are in mm

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
