Valves / Ball Valves

Single Piece
(Screw End)

Three Piece
(Screw End)

Single Piece Design
(Flange End)

Two Piece Design
(Flange End)

Three Piece Design
(Flange End)

Single Piece (Screw End)

Primary service reating & test pressure
Class	Working	HYD. Test pressure press.
		Body	Seat	Temp.
150	150 PSIG	500 PSIG	250 PSIG	200° F
Air Test - Seat 80 PSIG ± 10 PSIG

Technical Data
Design & Manufacturing STD:	BS 5351, API 602, IS:9890
Testing & Inspection STD:	API 598/ BS : 5146
Face to Face:	as per ANSI B 16.10
End connections:	16 Bar max (228 PSI)
Temp. Rating:	Screwed : (BSP, BSPT, NPT)

�

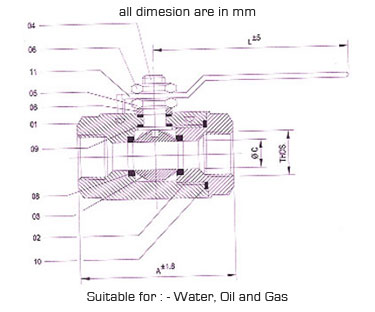

No.	Description	Material	Qty
01	Body	C.I. / C. S. / S.S. 304 / S.S. 316
02	Body connector	C.I. / C. S. / S.S. 304 / S.S. 316
03	Ball	AISI 304 / AISI 316	1
04	Stem	AISI 304 / AISI 316r	1
05	Gland nut	AISI 304 / AISI 316	1
06	Gland bush	AISI 304 / AISI 316	1
07	Lock Nut	AISI 304 / AISI 316
08	Seat Ring	PTFE
09	Stem Seal	PTFE
10	Body Sealent ring	PTFE
11	Wrench	M.S. / S.S.

Size	A	øC	L	THDS BSP/ BSPT/ NPT
15	73	13	126	1/2"
20	76	19	126	3/4"
25	88	26	126	1"
32	100	33	176	1.1/4"
40	118	39	176	1.1/2"
50	126	51	176	2"
65	152	62	253	2.1/2"
50	170	76	253	3"
all dimesion are in mm

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
