   Valves / Forged Steel Valves


FCS Globe Valves: ASA Class 800



Test Pressure
Body
Seat
3000 PSIG 2000 PSIG
Air test of seat at 100 PSIG

Technical Data
Manufacturing STD: BS 5352
Testing & Inspection STD:
API 598
Socket weld &
Threaded to:
As per ANSI B 16.11/ ANSI B 1.20.1
Flanged to: ANSI B 16.50
Fnaned to Flange Distance: ANSI B 16.10

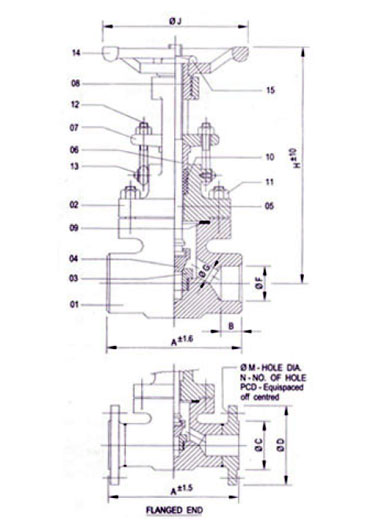

No. Description Material
Qty.
01 Body Forge Steel ASTM A 105
1
02 Bonnet Forge Steel ASTM A 105
1
04 Seat ring AISI 410 ( 13% CR.)
1
  Disc AISI 410 ( 13% CR.)
05 Stem AISI 410 ( 13% CR.)
2
06 Gland Bush AISI 410 ( 13% CR.)
1
07 Gland Flange ASTM A 105
1
08 Yoke Sleeve NI - Resist
1
09 Bonnet Gasket Spiral wound s.s. 304 with CAF
1
10 Gland packing S.S. Metal wire braided Asbestos
-
11 Bonnet Stud & Nut ASTM A 193 Gr. B7/ ASTM A 194 Gr. 2H
4 Set
12 Eye Bolt & Nut Forged C.S.
2 Set
13 Screw & Washer M. S. Galvanised
2 Set
14 Hand Wheel Cast Iron / C.S.
1
15 Hand Wheel Nut Carbon Steel
1

Screwed / Socket Weld Class - 800
Size
A
B
ø E
ø F
øG
H
øJ
15
86 10 13 22.0 9.5 150
78
20
91 13 13 27.5 12.7 165
78
25
104 13 15 34.0 17.5 185
100
40
127 15 25 48.6 28.6 239
142
50
143 16 25 61.0 36.5 248
142


Class - 150
Size
A
ø C
ø D
ø M
N
PCD
15
107
35
89
16
4
60.4
20
119
43
98
16
4
70.0
25
126
51
108
16
4
79.0
40
164
73
127
16
4
98.5
50
204
92
152
19
4
120.6

Class - 300
Size
A
ø C
ø D
ø M
N
PCD
15
153
35
95
16
4
66.5
20
179
43
118
19
4
82.5
25
204
51
124
19
4
89.0
40
230
73
155
19
4
114.0
50
268
92
165
22
8
127.0

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
