   Valves / Forged Steel Valves


FCS Gate Valves : ASA Class 800



Test Pressure
Body
Seat
3000 PSIG 2000 PSIG
Air test of seat at 100 PSIG

Technical Data
Manufacturing STD: API 602
Testing & Inspection STD:
API 598
Socket weld &
Threaded to:
As per ANSI B 16.10/ ANSI B 1.20.1
Flanged to: ANSI B 16.34
Fnaned to Flange Distance: ANSI B 16.10

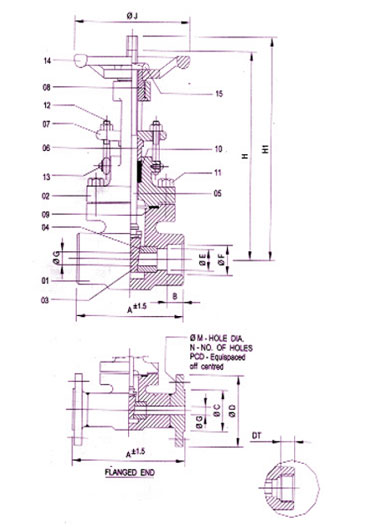

No. Description Material
Qty.
01 Body Forge Steel ASTM A 105
1
02 Bonnet Forge Steel ASTM A 105
1
03 Wedge AISI 410 ( 13% CR.)
1
04 Seat ring AISI 410 ( 13% CR.)
1
05 Stem AISI 410 ( 13% CR.)
2
06 Gland Bush AISI 410 ( 13% CR.)
1
07 Gland Flange ASTM A 105
1
08 Yoke Sleeve NI - Resist
1
09 Bonnet Gasket Spiral wound s.s. 304 with CAF
1
10 Gland packing S.S. Metal wire braided Asbestos
-
11 Bonnet Stud & Nut ASTM A 193 Gr. B7/ ASTM A 194 Gr. 2H
4 Set
12 Eye Bolt & Nut Forged C.S.
2 Set
13 Screw & Washer M. S. Galvanised
2 Set
14 Hand Wheel Cast Iron / C.S.
1
15 Hand Wheel Nut Carbon Steel
1

Screwed / Socket Weld Class - 800
Size
A
B
ø E
ø F
øG
H
H1
DT
øJ
15
86 10 13 22.0 9.5 154 174 13 94
20
91 13 15 27.5 14.0 160 185 13 94
25
104 13 22 34.0 18.0 168 198 15 98
40
127 15 36 48.6 32.0 231 274 25 142
50
143 16 45 61.0 42.0 242 287 25 142


Class - 150
Size
A
ø C
ø D
øG
ø M
N
PCD
15
107
35
89
11
16
4
60.4
20
119
43
98
13
16
4
70.0
25
126
51
108
14
16
4
79.0
40
164
73
127
14
16
4
98.5
50
177
92
152
16
19
4
120.6

Class - 300
Size
A
ø C
ø D
øG
ø M
N
PCD
15
139
35
95
14
16
4
66.5
20
151
43
118
16
19
4
82.5
25
164
51
124
17.5
19
4
89.0
40
190
73
155
21.0
19
4
114.0
50
215
92
165
22.0
22
8
127.0

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
