   Valves / Ball Valves


Three Piece (Screw End)


Primary service reating & test pressure
Class
Working
HYD. Test pressure press.
Body
Seat
Temp.
150
150 PSIG
425 PSIG
300 PSIG
200° F
300
300 PSIG
1100 PSIG
800 PSIG
200° F
800
800 PSIG
3000 PSIG
2000 PSIG
200° F
Air Test - Seat 80 PSIG ± 10 PSIG

Technical Data
Design & Manufacturing STD: BS 5351, API 602
Testing & Inspection STD:
API 598/ BS : 5146
End connections: BSP, BSPT, NPT, SOCKET WELD

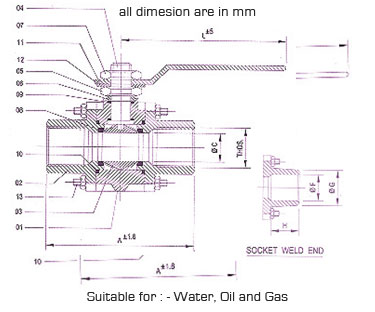

Socket Weld & Threaded to Threaded to

No.
Description
Material
Qty
01
Body
C.I./ C.S./ S.S. 304/316 /A 105
1
02
Body connector
C.I./C.S./ S.S. STD 304/316/A 105
1
03
Ball
AISI 304 / AISI 316
1
04
Stem
AISI 304 / AISI 316
1
05
Gland nut
AISI 304 / AISI 316
1
06
Gland bush
AISI 304 / AISI 316
1
07
Lock Nut
AISI 304 / AISI 316
2
08
Seat Ring
PTFE
2
09
Stem Seal
PTFE
2
10
Body Sealent ring
PTFE
2
11
Wrench
M.S. / S.S.
1
12
Stop M.S.
4
13
Stud & Nut C.S./ S.S.
4

Class 150
Size
A
øC
L
THDS BSP/ BSPT/ NPT
F
G
H
15
91
13
155
1/2"
21.8
29
12.7
20
96
19
160
3/4"
27.3
35
19.0
25
101
25
160
1"
34.1
43
22.0
32
109
32
160
1.1/4"
43.0
54
22.0
40
121
38
176
1.1/2"
49.0
58
22.0
50
131
50
176
2"
61.3
71
23.0

Class 800
Size
A
øC
L
THDS BSP/ BSPT/ NPT
F
G
H
15
69
13
115
1/2"
21.8
29
12.7
20
80
15
122
3/4"
27.3
35
19.0
25
96
19
153
1"
34.1
43
22.0
32
106
23
178
1.1/4"
43.0
54
22.0
40
116
33
178
1.1/2"
49.0
58
22.0
50
129
36
178
2"
61.3
71
23.0

Note : Due to constant upgradation designs & dimensions are subject to change wihtout notice.
